8P A3 Air Ride Install: AccuAir e-Level -

Air Lift - Whiteline - Zaetech

Monday, July 13, 2015

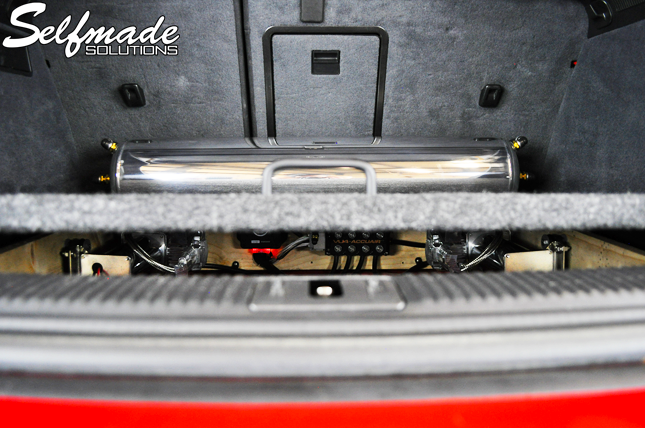

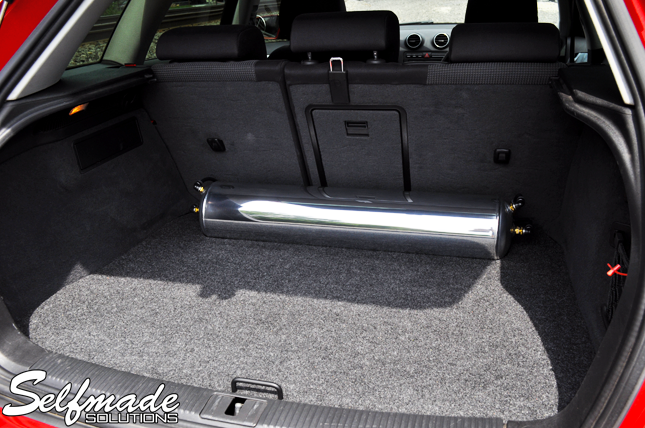

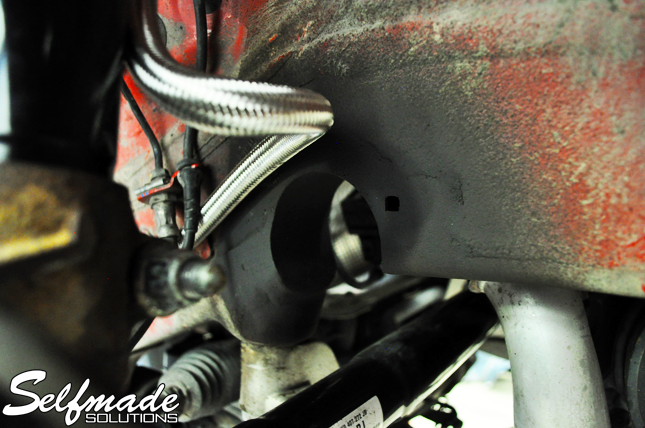

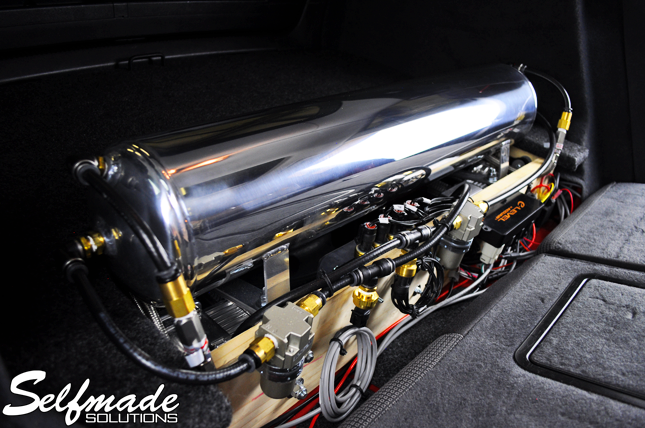

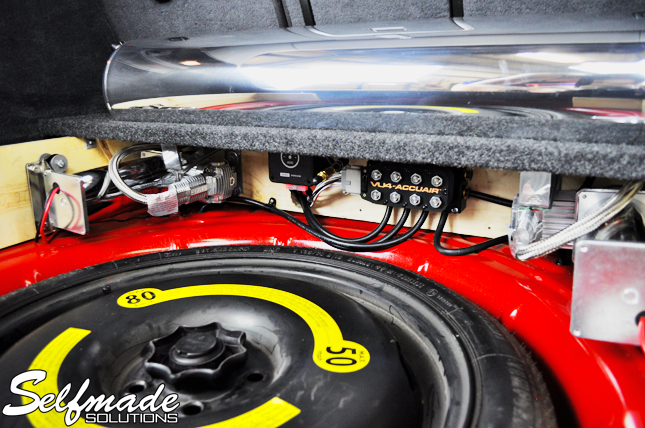

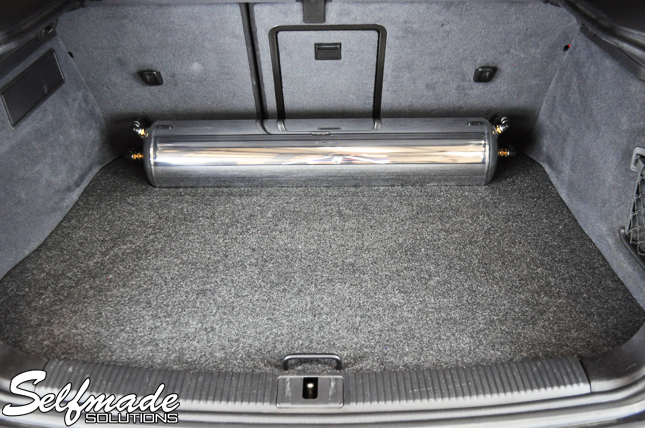

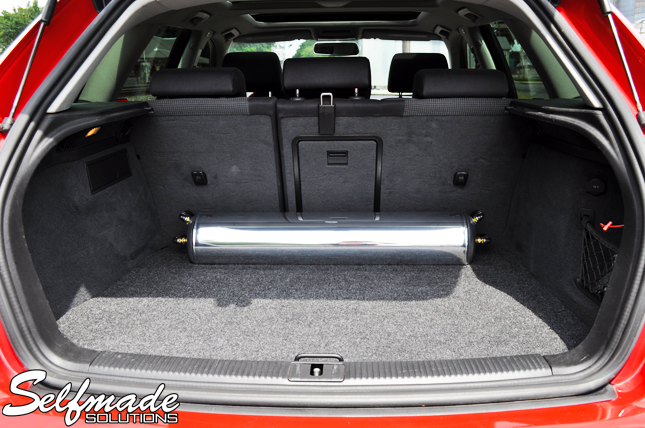

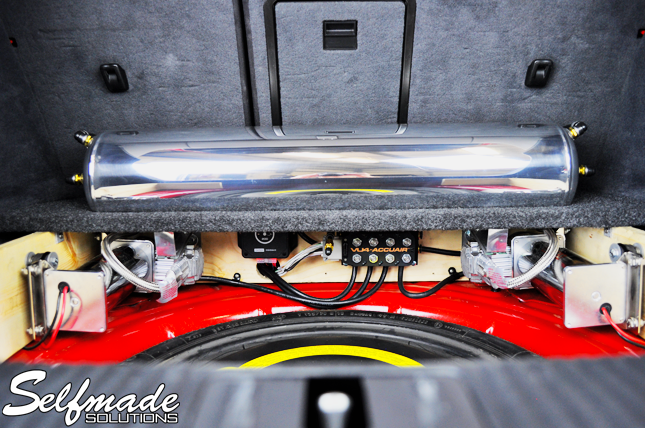

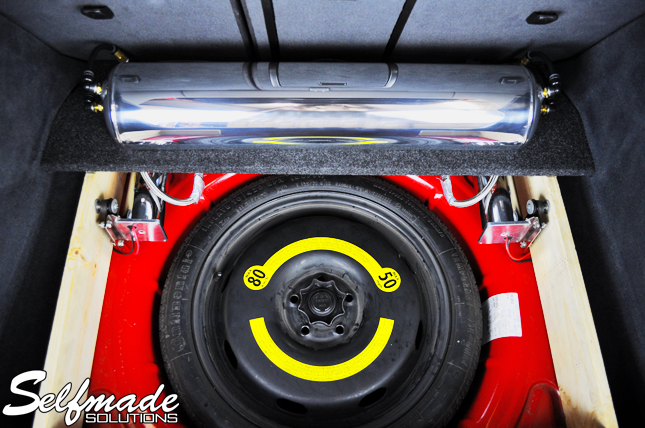

This 2006 Audi A3 came into the shop pretty much stock. The owner wanted a reliable air ride setup with only a few requests. Retaining the front sway bar was a must and he wanted a simple false floor trunk setup with easy access to the spare tire and jack. In addition to the parts list below, we also notched the passenger side front frame rail, rolled the fenders and replaced a leaky radiator. This was a fun install and the positive reaction and excitement from the client when he picked it up was equally rewarding, enjoy!


PARTS LIST:

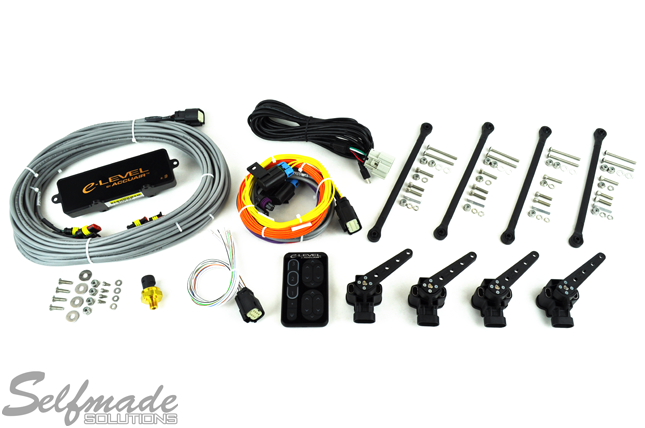

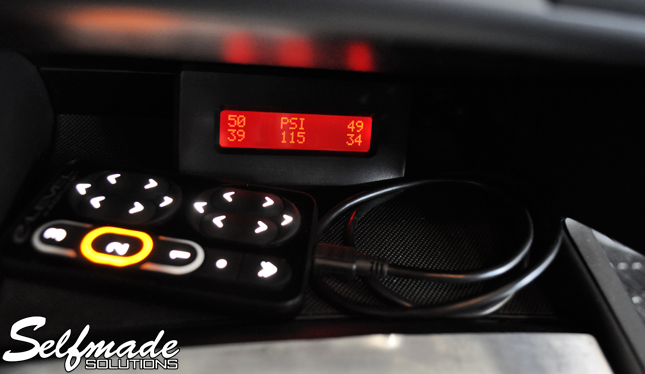

AccuAir e-Level controller w/ touchpad - black

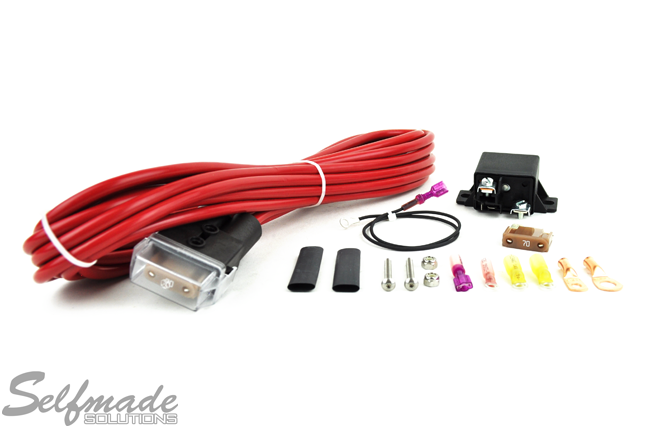

AccuAir power supply kit

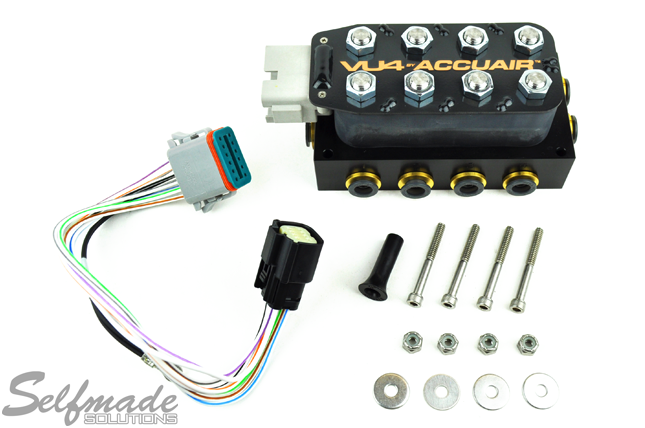

AccuAir VU4 corner valve kit

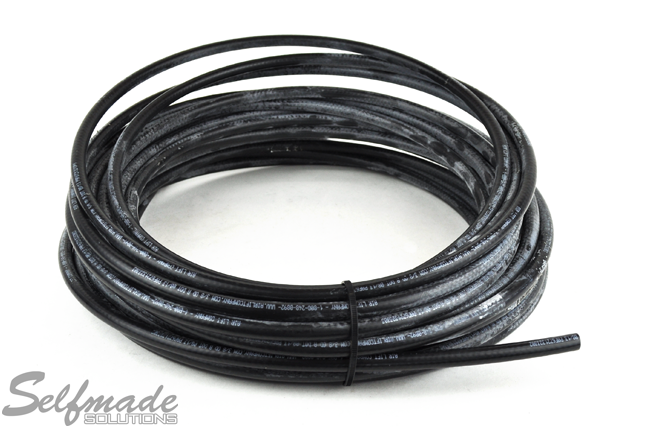

Air Lift 3/8" DOT air line

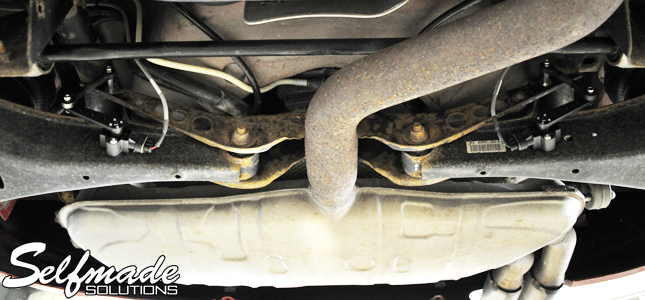

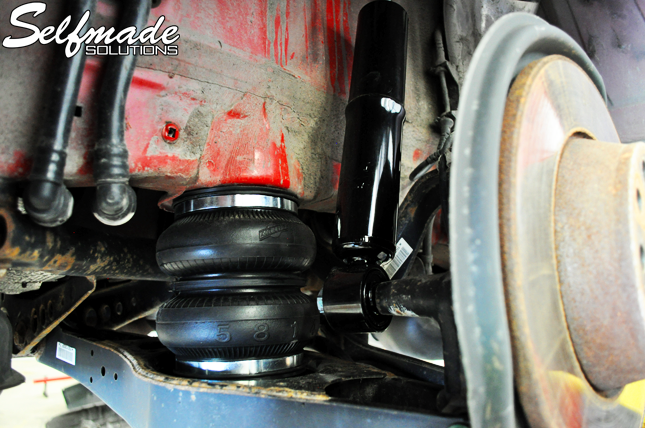

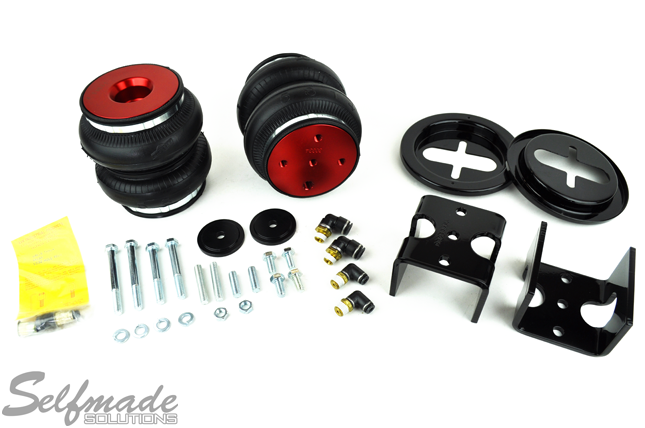

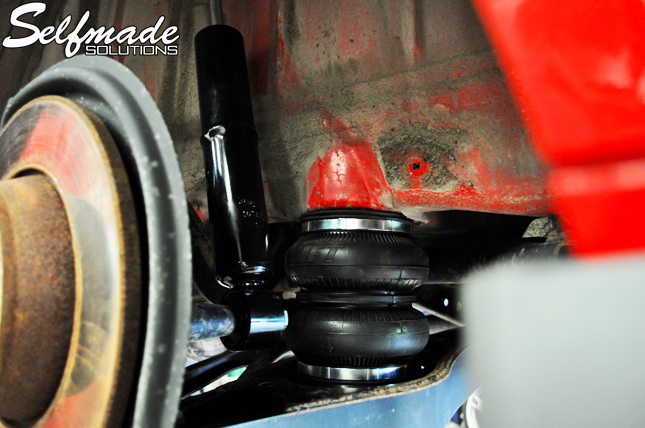

Air Lift 8P A3 double bellow rear kit

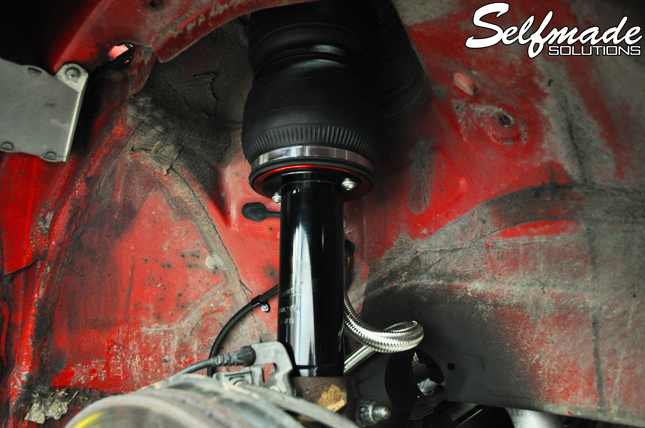

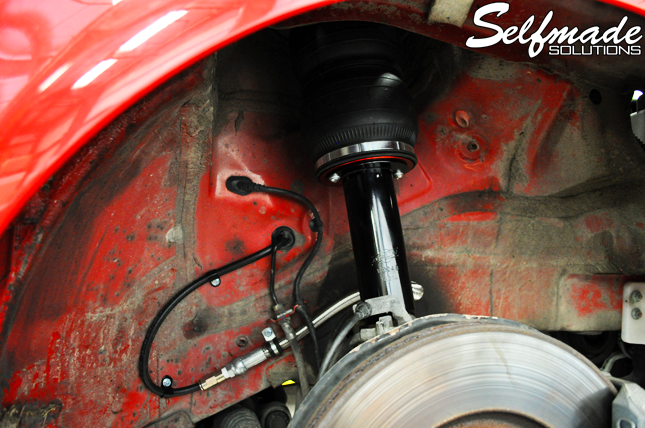

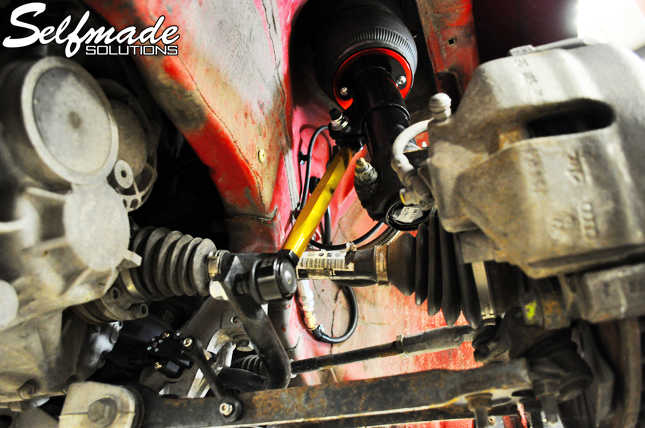

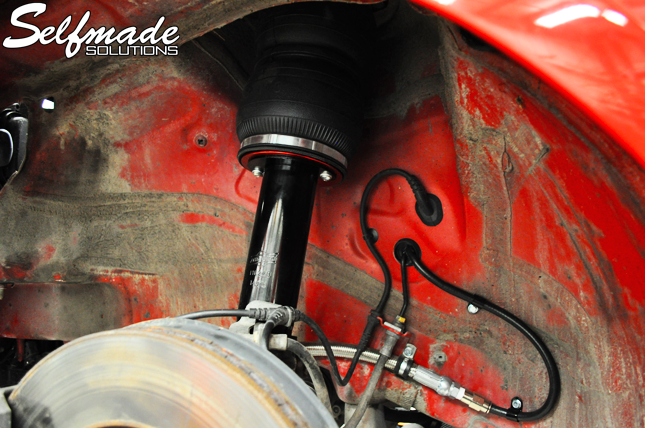

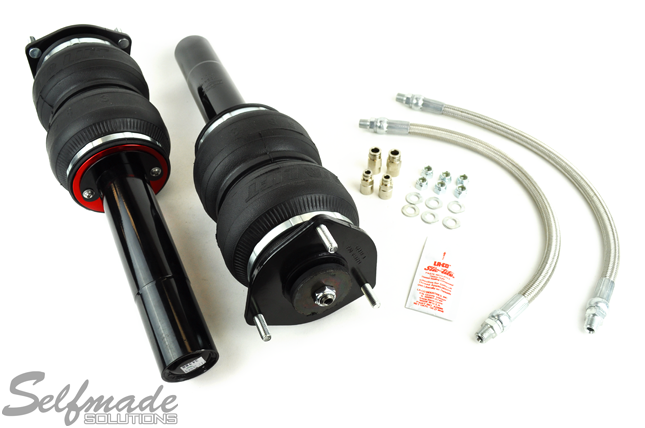

Air Lift 8P A3 slam series front struts

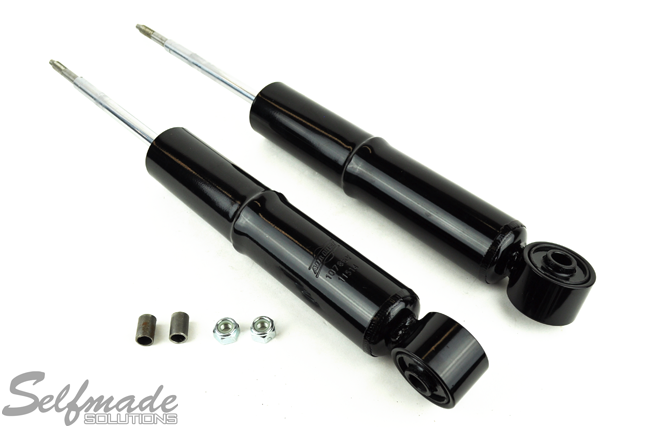

Air Lift 8P A3 slam series rear shocks

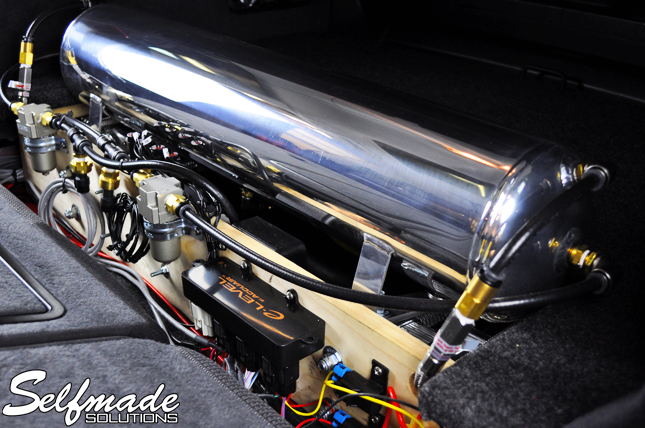

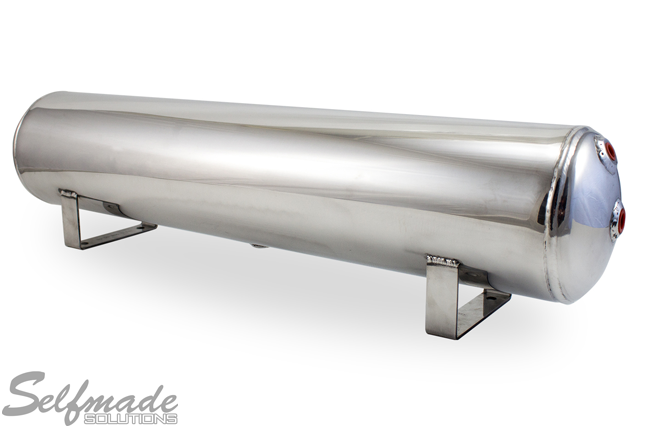

Air Lift aluminum 4 gallon tank - polished

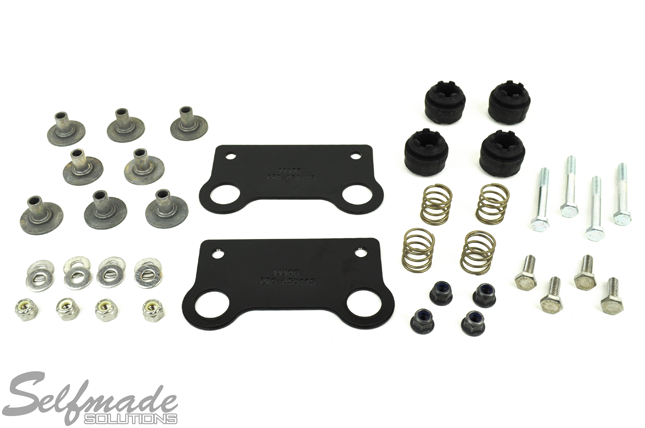

Air Lift compressor isolator kit

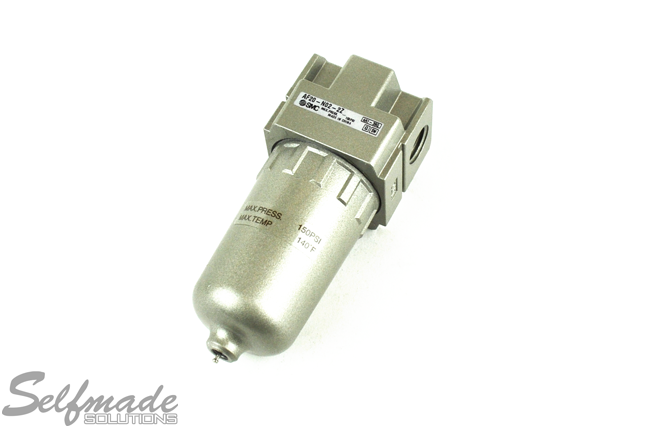

Dual SMC water traps - 1/4" NPT

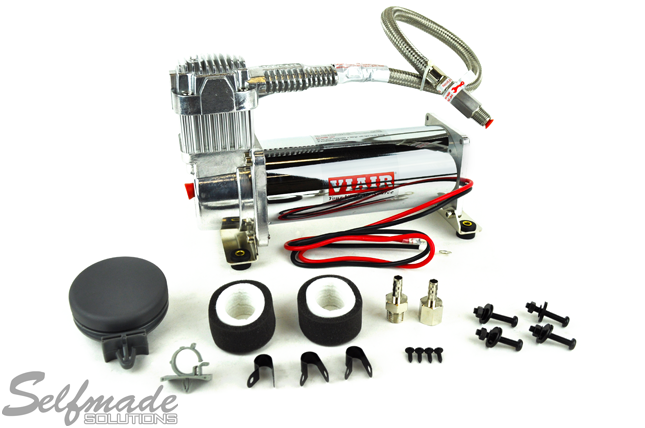

Dual VIAIR 444C compressors

Tank drain kit

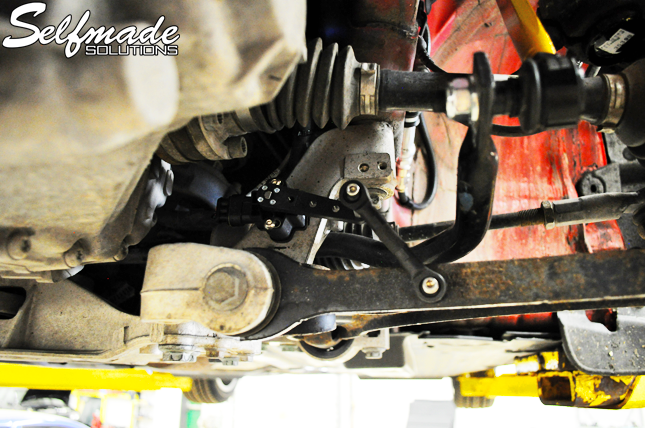

Underwraps Automotive front sway bar brackets

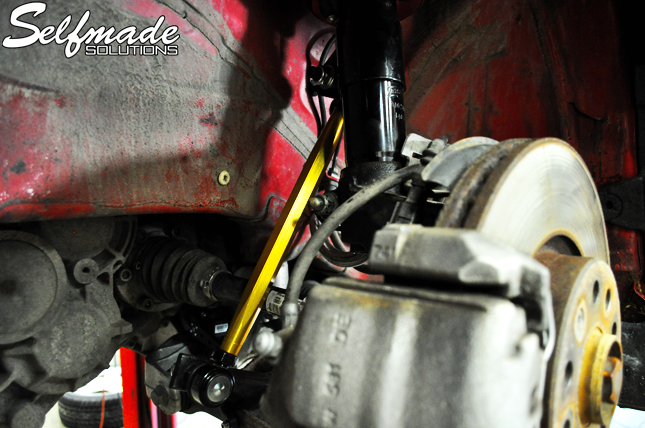

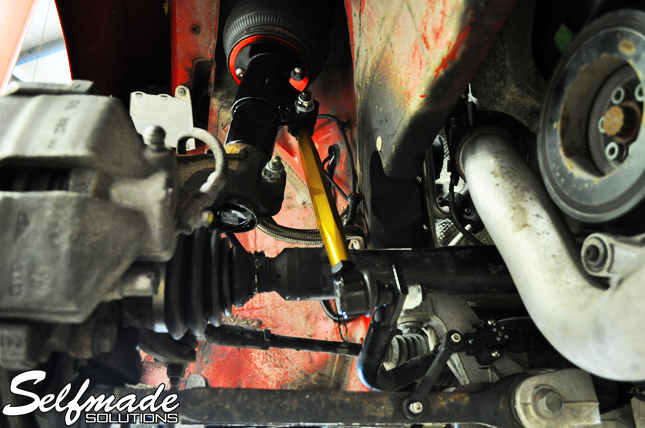

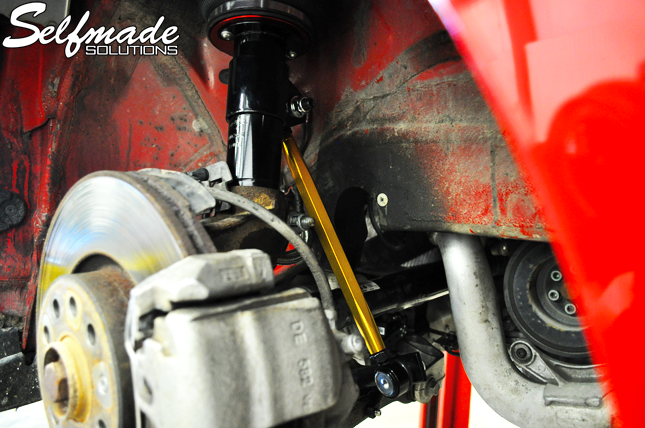

Whiteline adjustable front sway bar end links

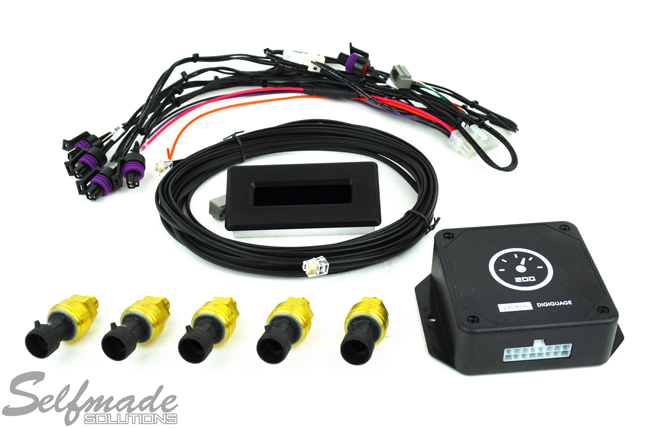

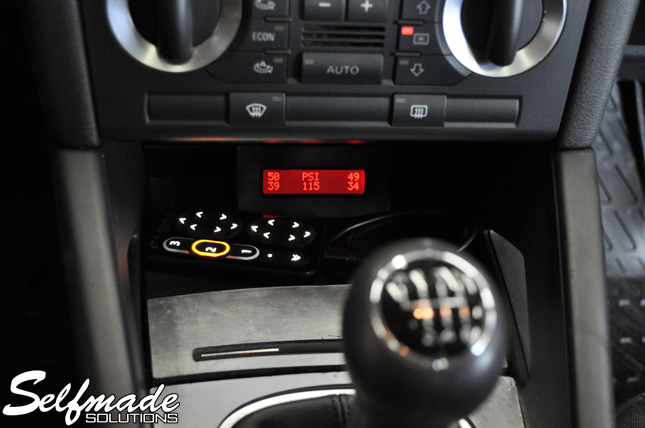

Zaetech DigiGauge - red LED display
